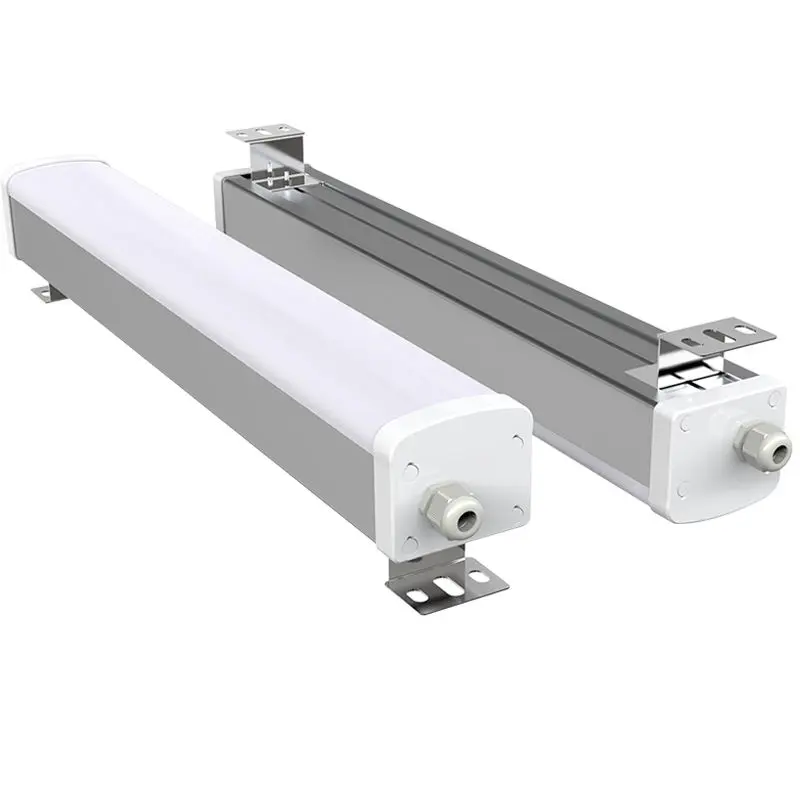

Adjustable installation angle AL + PC LED surface mount waterproof lamp

  • Voltage: AC85-277V ACDC24/36V
  • Specification: 60/90/120/150cm 20W/40W/50W/60W
  • Hertz: 50-60Hz
  • PF: 0.95
  • DRIVE: PHILIPS LIFUD BOKE
  • Emergency power: 8W/10W/20W
  • emergency time: 60/90/180min
  • sensor: Infrared induction/microwave induction
  • Life: 50000H 5-year warranty
  • LM: > 130lm/W Customizable > 180LM/W
  • CRI: 80
  • CCT: 2700/4000k/6500k
  • LED: LED2835 OSRAM CREE LUMILEDS SANAN
  • Angle: 120°
  • The above parameters can be customized according to requirements

Application

1. Application environment: Tunnel; Warehouse; garage; Factory; Cold storage; airport; Metro Station; Livestock breeding plants; stadium; farm; Generally humid environment; High and low temperature environment; Corrosive environment, etc.

 Product function

2. Product function: 0-10v dimming; Graffiti intelligent Bluetooth dimming; DALI dimming; Ultra high brightness; Battery emergency; Motion sensors; Can be connected in series; Metal casing; Waterproof, Explosion-proof, Dustproof, UV resistant and Corrosion-resistant; High temperature resistance and frost resistance; Anti vibration.

Product characteristics

1. Product material: reinforced PC (plastic wrapped aluminum)

2. Protection level: IP65 IK10 flame retardant V2 anti-corrosion WF2

3. Installation method: ceiling mounted; Suspension rod type; Hanging wire type; Wall mounted

4. Certification standards: ISO9001/CE/ROHS/EMC/FCC/SAA/TUV

Advantages of this Triple-Proof Lights

The convenience of the adjustable installation angle Tri-proof lamp and the applicable installation locations



Convenience:

1. Flexible Lighting Direction: Adjustable angles allow precise control of light direction and coverage, adapting to specific needs.

2. Optimized Illumination: Users can adjust the angle to avoid glare or shadow, improving visibility in work spaces or public areas.

3. Easy Installation: Simplifies setup by accommodating different mounting heights and surfaces without additional fixtures.



Applicable Locations:

1. Industrial Facilities: Warehouses, factories, and workshops for targeted lighting in production areas.

2. Outdoor Spaces: Parking lots, stadiums, and gardens for adjustable coverage over large or uneven terrain.

3. Commercial Areas: Retail stores, exhibition halls, and supermarkets to highlight products or signage.

4. Transportation Hubs: Airports, train stations, and tunnels for adaptable lighting in high-traffic zones.

The lamp's adjustability and durability make it suitable for diverse environments, ensuring efficient and effective lighting solutions.

Product Details Display

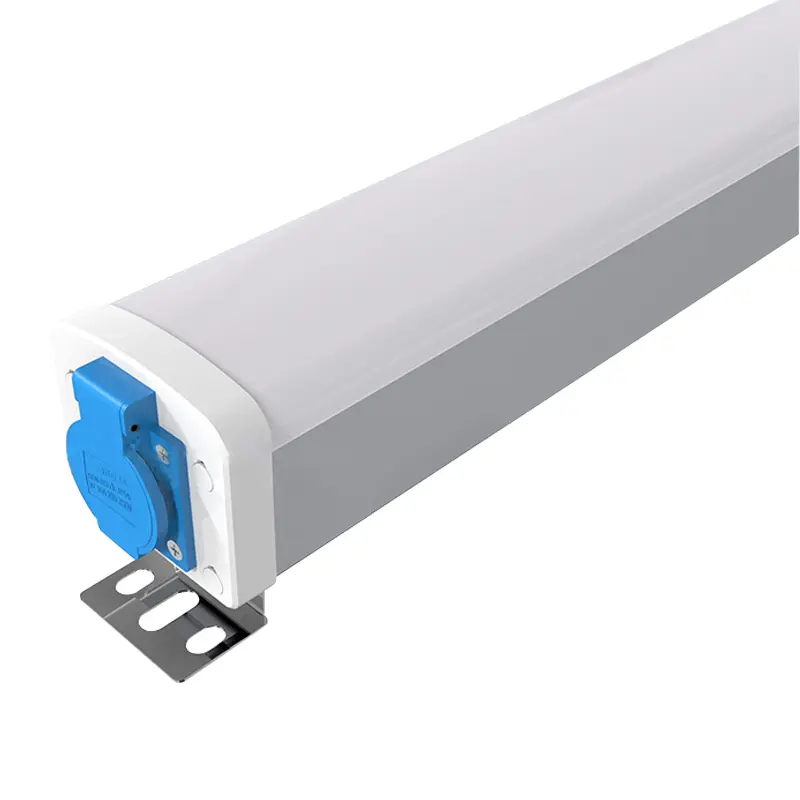

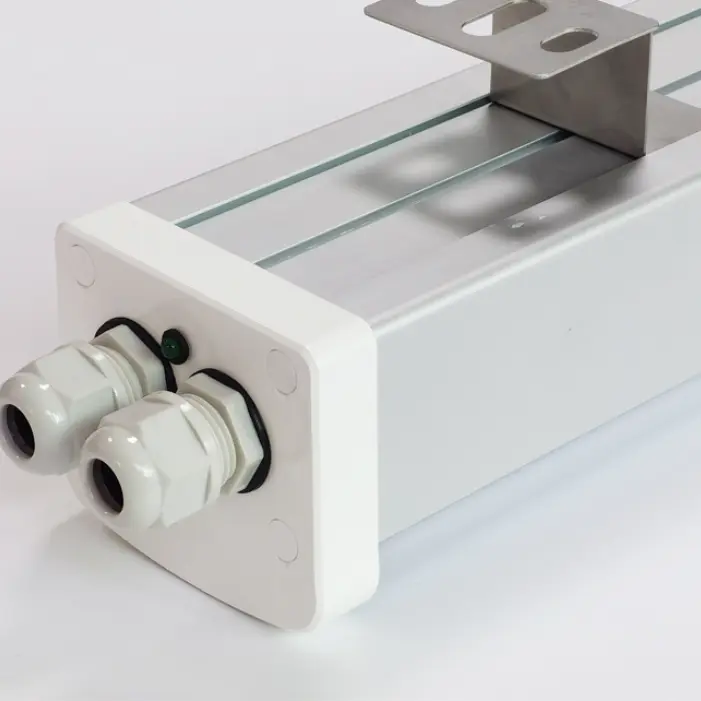

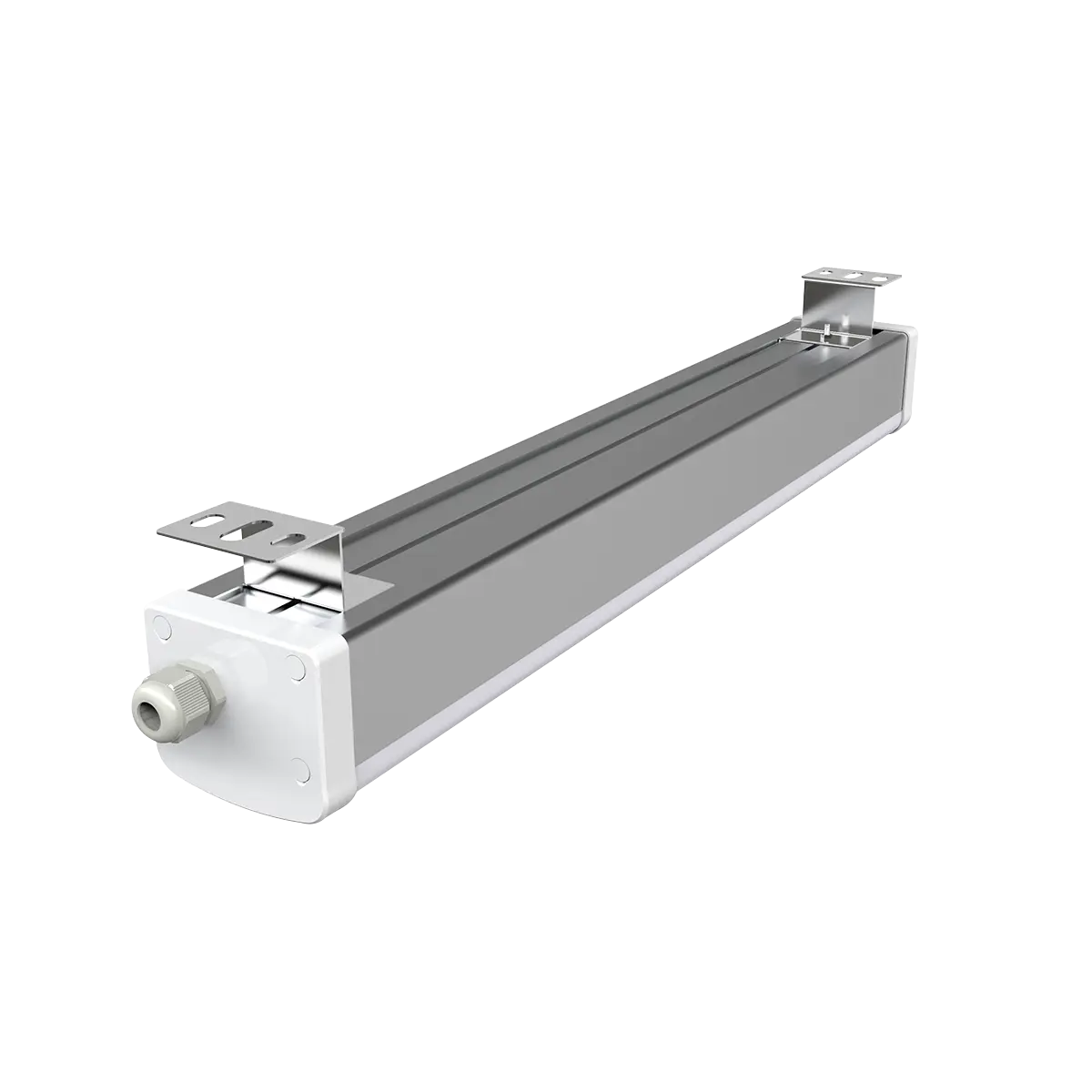

SCD-TP861详情图 (1)SCD-TP861详情图 (2)SCD-TP861详情图 (3)
