Aluminum+Acrylic IP65 Warranty3 Five Years 565*295mm LED purification panel light

The above parameters can be customized according to requirements

Model :  SCD-TPA-1200

  • Voltage: AC220-240V AC85-277V

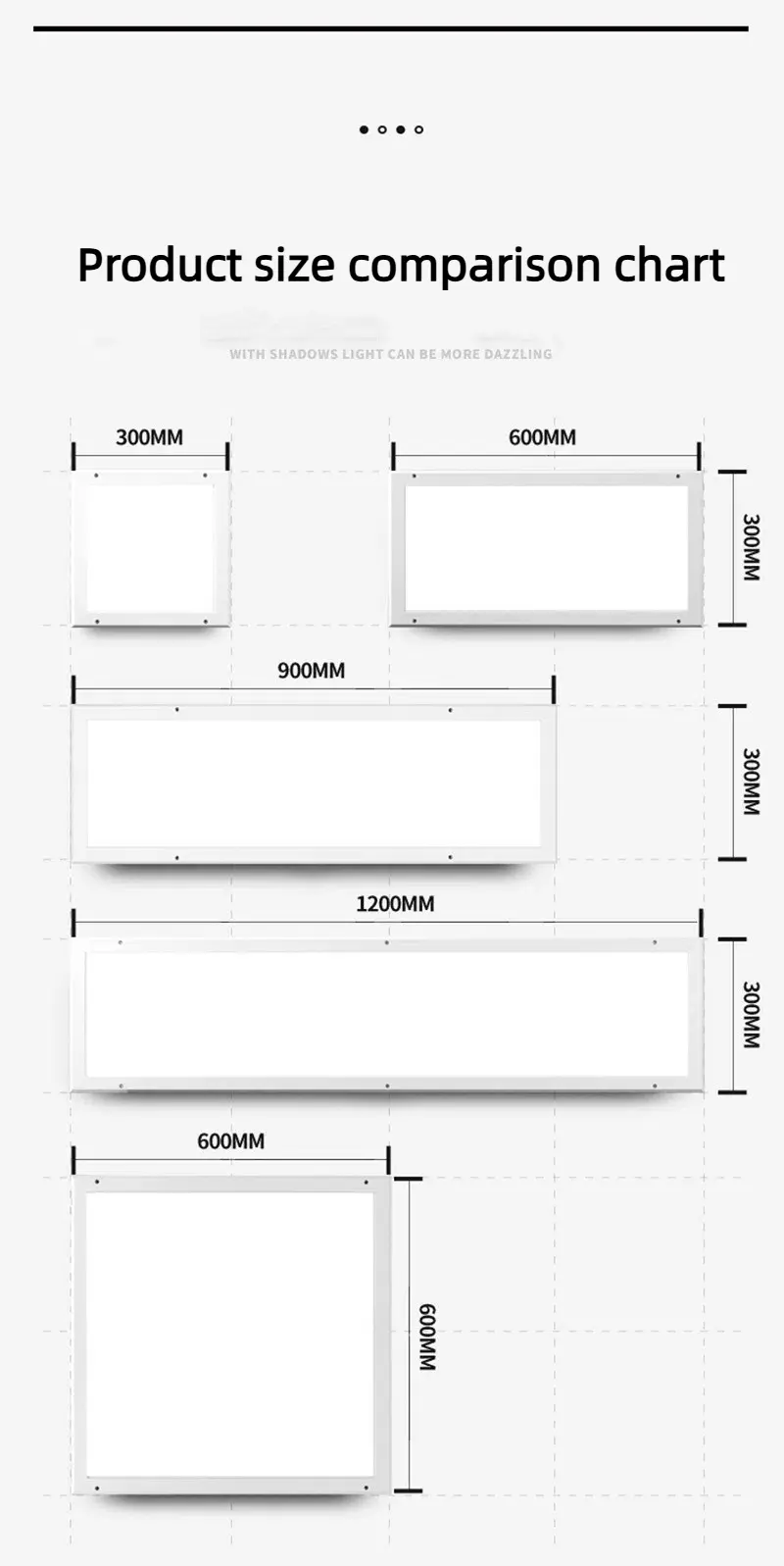

  • Specification: 595*595mm/295*1195mm/1195*595mm 40W/40W/60W
  • Hertz: 50-60Hz
  • PF: 0.9/0.95
  • DRIVE: ANL / PHILIPS / LIFUD / BOKE
  • Emergency power: 3W /5W
  • emergency time: 60/90/180min
  • sensor: Infrared induction/microwave induction
  • Life: 50000H 3-5-year warranty
  • LM: > 130lm/W Customizable>180LM/W
  • CRI: 80
  • CCT: 2700/4000k/6500k
  • LED: LED2835 OSRAM CREE LUMILEDS SANAN
  • Angle: 120°

Application Environmen

1. Application environment: dust-free workshop; biological laboratory; hospital; cabin; pharmaceutical factory; food factory; bathroom; aquatic factory; general clean environment: corrosive environment, etc. .

 Product function

Product function: 0-10v dimming; Doodle smart Bluetooth dimming; DALI dimming; Dip switch current power; High power, high lumen; Battery emergency; Sensor; CCT color temperature; Can be connected in series; Metal case; Waterproof, dustproof, explosion-proof, anti-UV corrosion; High temperature and freezing resistance; Anti-vibration.

Product characteristics

1.Protection class: IP65 IK08
2.Installation mode: ceiling type; Boom type; Pendant type; Wall mount type
3.Standard: ISO9001 / CE/ROHS/EMC/FCC/SAA/TUV
4.Product life: 50000h Warranty 5 years
5.  Non-standard customization: Undertake OEM ODM orders

Advantages of this Triple-Proof Lights

Still worried about the lighting problem in special environment? Take a look at this IP65 ik08 triple-proof panel light, which will change your perception of lighting!

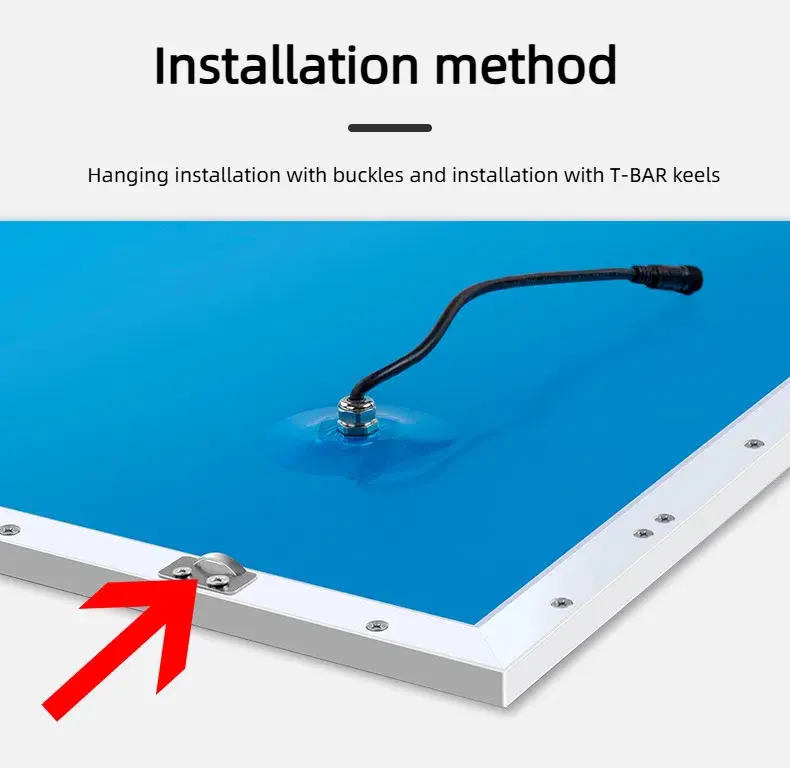

Easy to install, multiple adaptations: no matter recessed, ceiling-mounted, spring-clamped or wire-hanging installation, it can be easily managed to meet the installation needs of all kinds of scenarios.
Superior material and excellent performance: Aluminum spraying with PMMA light guide plate material is not only durable, but also has a lumen of up to 120lm/w, illuminating every corner. With IP65 protection level and ik08 protection level, it is waterproof, dustproof, insect-proof, grease-proof, lightning-proof, anti-interference, anti-glare, anti-explosion and corrosion-proof, which can easily cope with complex environments. In addition, high temperature resistance, anti-freezing, anti-vibration, extraordinary strength. There are even functions of sterilization, air purification and odor removal, creating a healthy light environment for you.
Various specifications, no worries after-sales: a variety of sizes are available, the power covers 18w - 60w, and can also be connected in series, flexible matching. Warranty up to 3 - 5 years, quality is absolutely guaranteed. And factory direct sales, the price is super favorable!
Aquatic factories, dust-free workshops, biological laboratories, hospitals, etc., whether it is a general clean environment or corrosive environment, it is the preferred choice of lighting, choose this triple-proof flat panel light, is to choose quality and peace of mind!

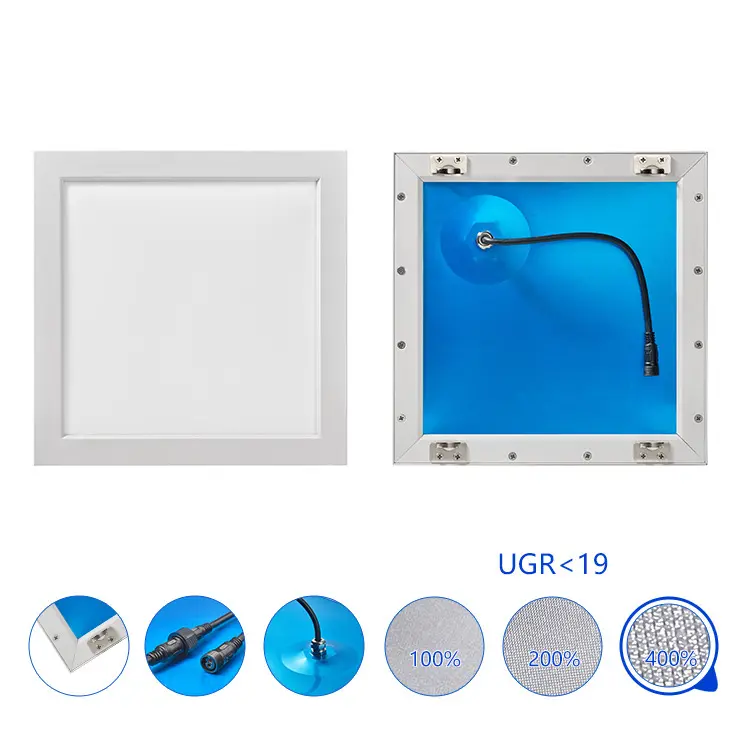

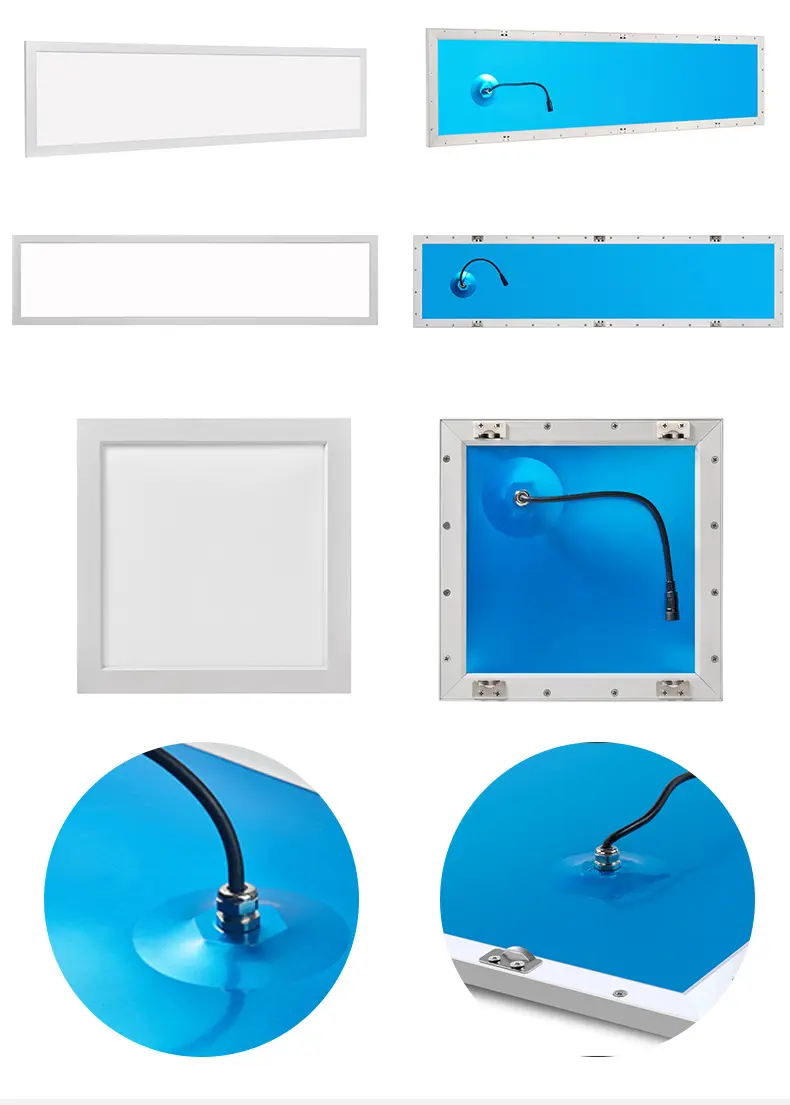

Product Details Display

123
