Energy-Saving High-Power Cable Installation Waterproof, Dustproof, Explosion-Proof Linear Industrial Lighting Three Anti-Lamp

Model: SCD-TL850

Voltage: AC220-240V  AC85-265V

Specification: 60/120/150cm   40W/80W/120W

Hertz: 50-60Hz

PF: 0.9/0.95

DRIVE: ANL / PHILIPS / LIFUD / BOKE

Emergency power: 8W/10W/20W

emergency time: 60/90/180min

sensor: Infrared induction/microwave induction

Life: 50000H 5-year warranty

LM: > 130lm/W  Customizable>170LM/W

CRI: 80

CCT: 2700/4000k/6500k

LED: LED2835 OSRAM CREE LUMILEDS SANAN

Angle: 120°

The above parameters can be customized according to requirements

    Application Environmen

    Application: Tunnel; Basement, warehouse; A garage; Factory; The Airport; Subway station; Ships; A mine field; The stadium; A farm; General humid environment; High and low temperature environment; Corrosion environment, etc.

     Product function

    Product function: 0-10v dimming; Doodle smart Bluetooth dimming; DALI dimming; Ultra high brightness; Battery emergency; Motion sensor; CCT color temperature; Can be connected in series; Plug open cover connection; Waterproof, dustproof, explosion-proof, anti-UV corrosion; High temperature and freezing resistance; Anti-vibration.

    Product characteristics

    1. Protection class: IP67 IK10 Flame retardant V2 Anti-corrosion WF2
    2. Installation mode: ceiling type; Boom type; Pendant type; Wall mount type
    3. High efficiency and energy saving【Save operating costs for customers】
    4. Standard: ISO9001 / CE/ROHS/EMC/FCC/SAA/TUV
    5. Product life: 50000h Warranty 5 years
    6. Non-standard customization: Undertake OEM ODM orders

    Advantages of this Triple-Proof Lights

    This triple-proof light is used for the analysis of large logistics centers or gymnasiums:
    1. High protection to adapt to the complex environment: logistics centers and gymnasiums have a complex environment, there may be dust, moisture and so on. The IP67 level waterproof and dustproof performance of this three-proof lamp can effectively prevent dust from entering and water from intruding, ensuring that the lamps and lanterns work normally in harsh environments and reducing failures and damages caused by environmental factors.
    2. High power and high lumens to provide sufficient lighting: large logistics centers and gymnasiums have a vast space and need sufficient lighting to ensure the smooth running of work and activities. This light 1.2m can do 120w, high power and high lumen, can provide bright and even light for large places, which helps to improve the working efficiency of the logistics center, and ensure the safety and smooth running of the activities in the stadium.
    3. Multi-function to meet different needs: dimming, induction or emergency functions can be added. In the logistics center, the dimming and induction functions can automatically adjust the brightness according to different work areas and time, realizing energy saving; the emergency function can provide emergency lighting in unexpected situations such as power outages, safeguarding the safety of personnel and goods. In gymnasiums, the dimming function can adjust the lighting atmosphere according to different events or activity scenes, and the sensor function can automatically reduce the brightness when no one is around, saving energy.
    4. Durability to reduce maintenance costs: the combination of aluminum shell and PC cover, as well as explosion-proof, UV, corrosion, high temperature, frost and vibration resistance, etc., so that the lamps and lanterns are durable and adapt to the vibration of the goods handling in the logistics center and the various complex environments in the gymnasium, reducing the frequency of replacement of lamps and lanterns, reducing the maintenance costs.

    Product Details Display

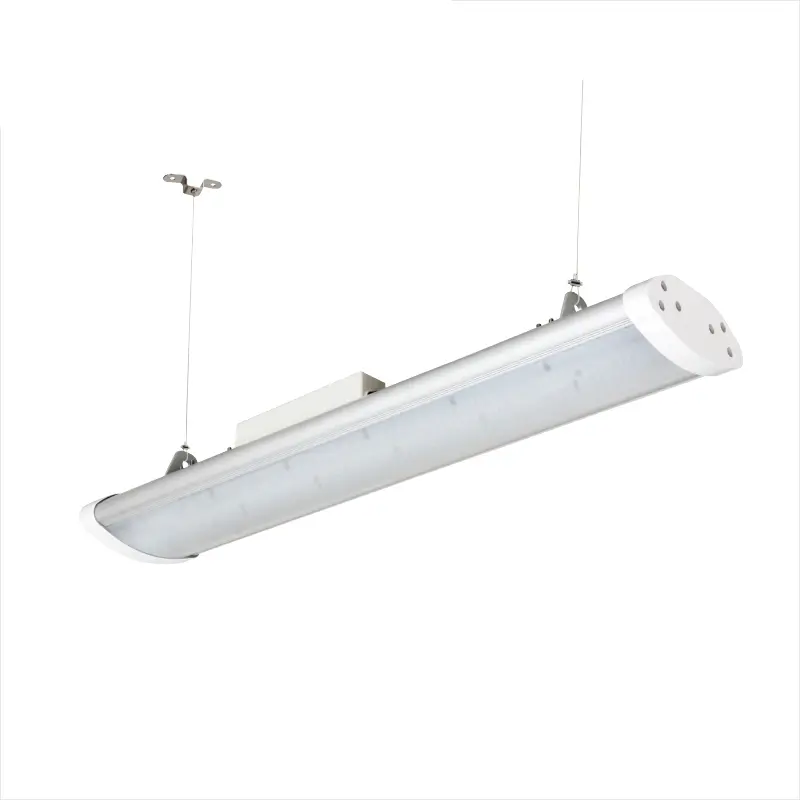

    • SCD-TL850 (1)

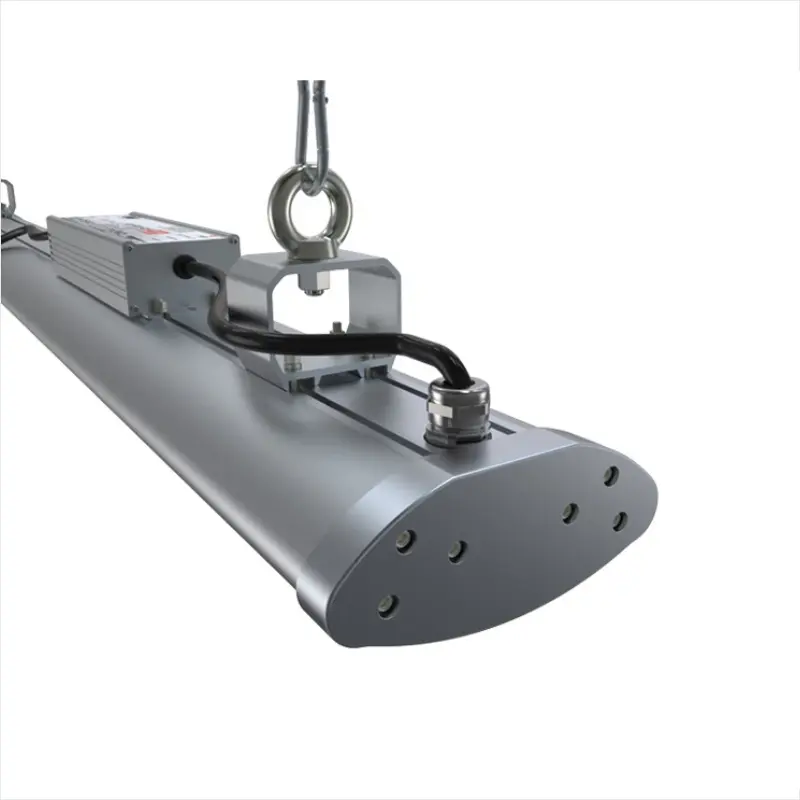

    • SCD-TL850 (2)

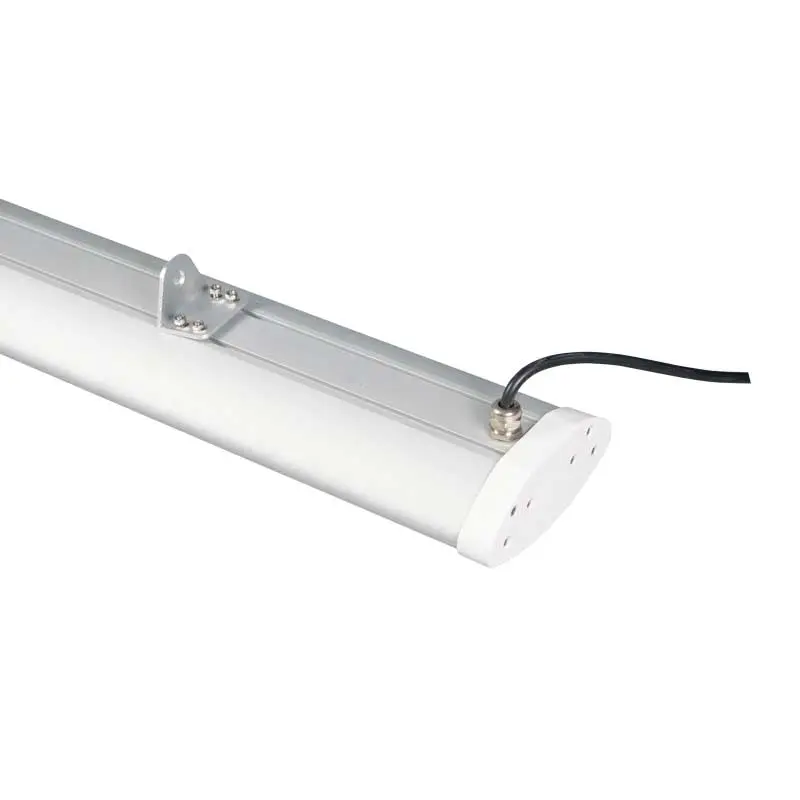

    • SCD-TL850
