High and low temperature resistant freeze-proof LED linear lamp

The above parameters can be customized according to requirements

Model :  SCD-TP860

  • Voltage: AC85-277V ACDC24/36V
  • Specification: 60/90/120/150cm 20W/40W/50W/60W
  • Hertz: 50-60Hz
  • PF: 0.95
  • DRIVE: PHILIPS LIFUD BOKE
  • Emergency power: 8W/10W/20W
  • emergency time: 60/90/180min
  • sensor: Infrared induction/microwave inductio
  • Life: 50000H 5-year warranty
  • LM: > 130lm/W Customizable>180LM/W
  • CRI: 80
  • CCT: 2700/4000k/6500k
  • LED: LED2835 OSRAM CREE LUMILEDS SANAN
  • Angle: 120°

Application Environmen

1. Application environment: Tunnel; Warehouse; garage; Factory; Cold storage; airport; Metro Station; Livestock breeding plants; stadium; farm; Generally humid environment; High and low temperature environment; Corrosive environment, etc.

 Product function

2. Product function: 0-10v dimming; Graffiti intelligent Bluetooth dimming; DALI dimming; Ultra high brightness; Battery emergency; Motion sensors; Can be connected in series; Metal casing; Waterproof, Explosion-proof, Dustproof, UV resistant and Corrosion-resistant; High temperature resistance and frost resistance; Anti vibration.

Advantages of this Triple-Proof Lights

1. Product material: reinforced PC (plastic wrapped aluminum)

2. Protection level: IP65 IK10 flame retardant V2 anti-corrosion WF2

3. Installation method: ceiling mounted; Suspension rod type; Hanging wire type; Wall mounted

4. Certification standards: ISO9001/CE/ROHS/EMC/FCC/SAA/TUV



The functions and applications of high and low temperature resistant freeze-proof LED linear lamps



Functions:

1. Wide Temperature Tolerance: Operates efficiently in extreme temperatures, ensuring stable performance in both freezing and high-heat environments.

2. Enhanced Durability: Resistant to thermal shock and cold brittleness, prolonging lifespan in harsh conditions.

3. Energy Efficiency: Low power consumption with high light output, reducing energy costs.

4. Instant Illumination: No warm-up time, providing immediate lighting in critical situations.



Applications:

1. Cold Climate Lighting: Ideal for roads, bridges, and outdoor areas in regions with severe winters.

2. Industrial Environments: Used in factories, warehouses, and oil/gas facilities exposed to temperature extremes.

3. Transportation: Suitable for vehicles, trains, and ships operating in varying climates.

4. Commercial Spaces: Provides reliable lighting for stores, supermarkets, and public areas in temperature-fluctuating settings.

Product Details Display

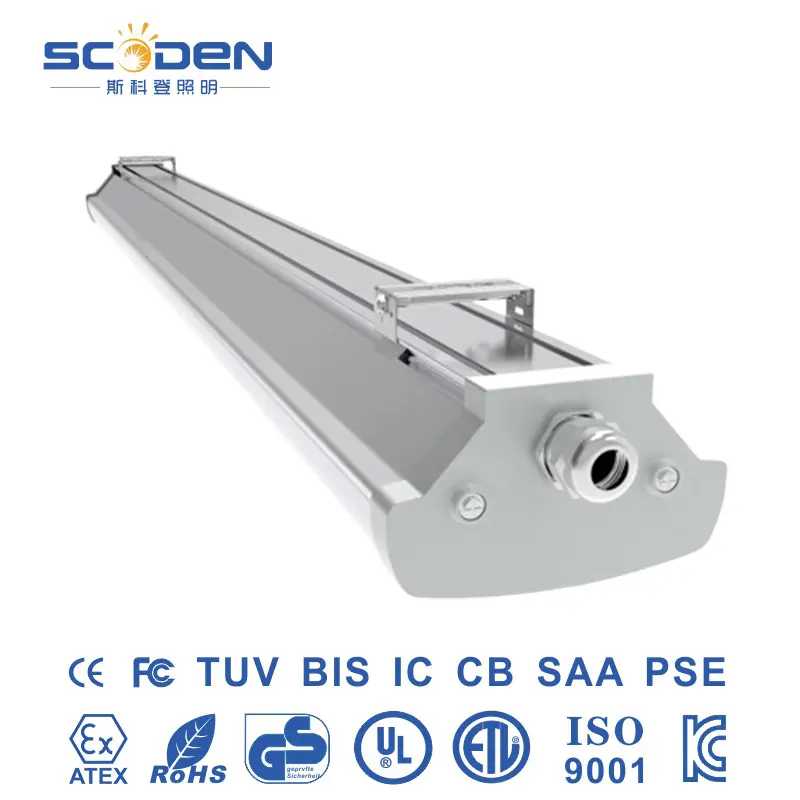

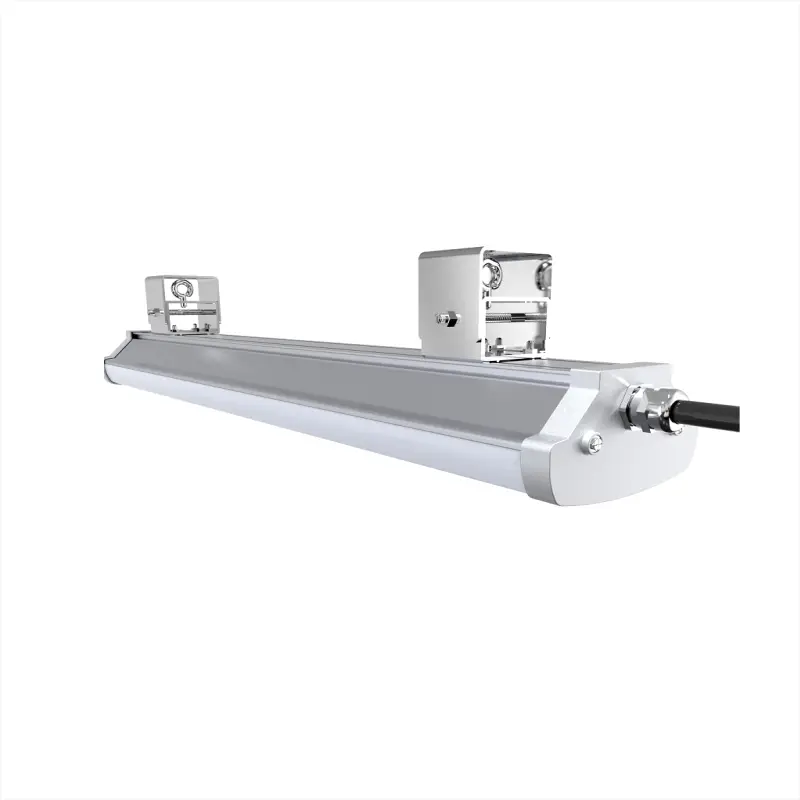

SCD-TP860主图 (1)4SCD-TL860  P3
