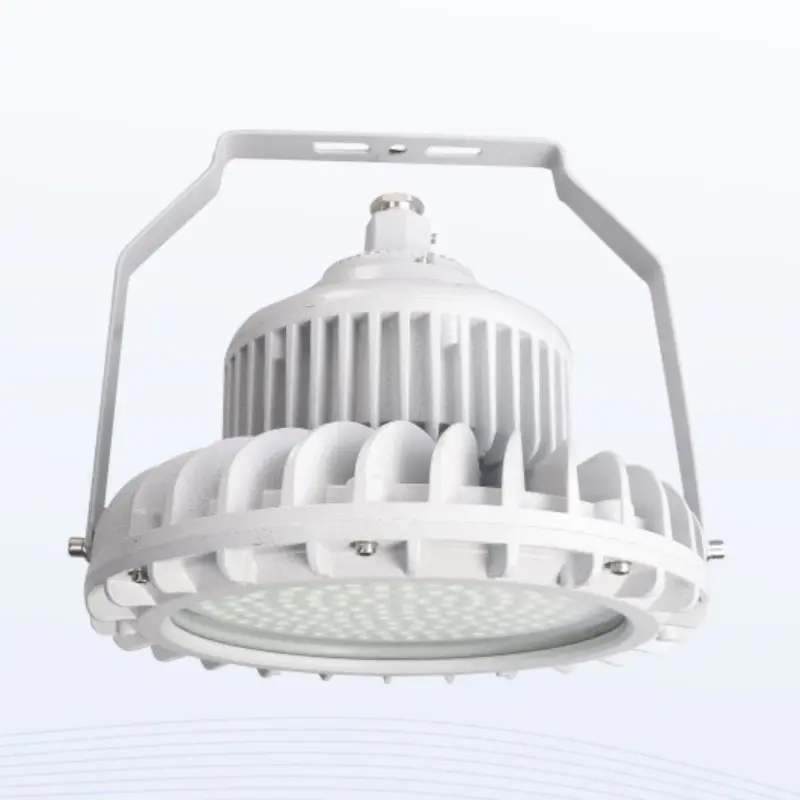

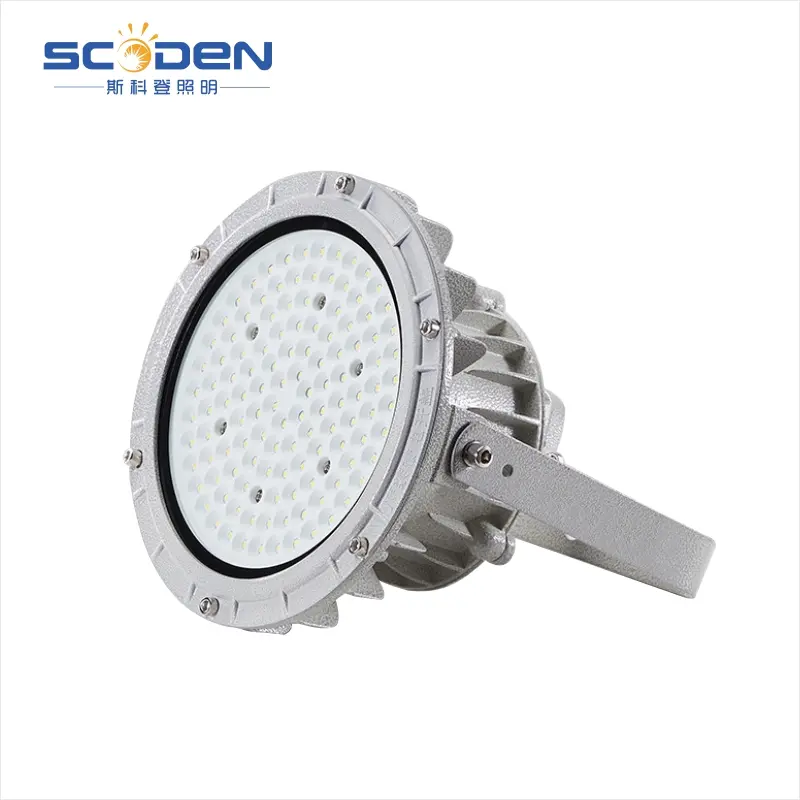

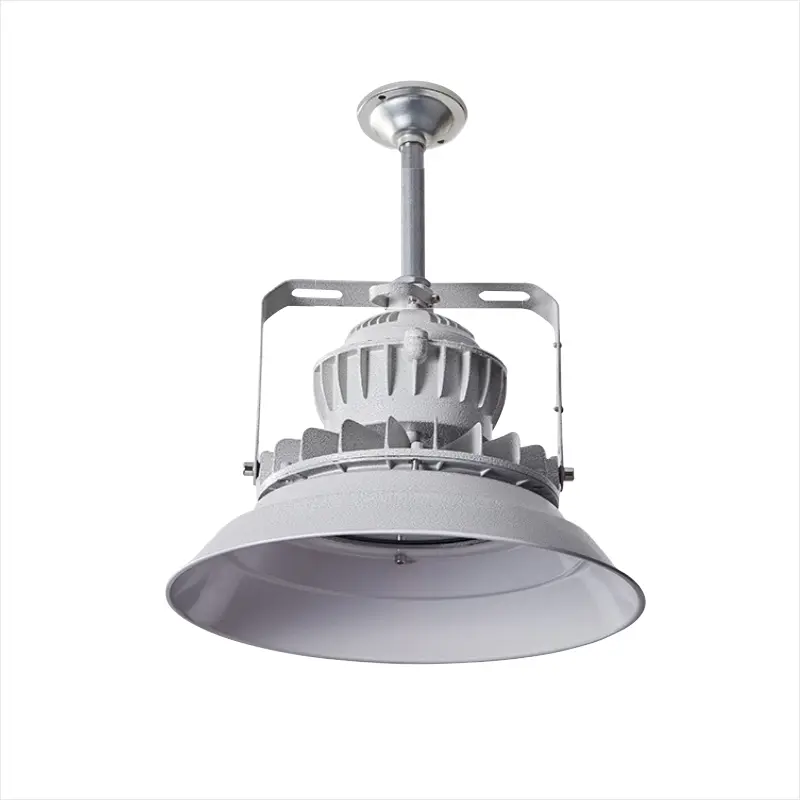

IP66 2.5m Sleeve Pole Type Triple Cavity Industrial Floodlight Explosion Proof Lamps

Model: SCD- BLD 138

Voltage: AC85-265VAC   or   DC12/24/36V

Product size: 275*235mm / 275*305mm / 275*200mm / 275*195mm

Product power: 50W/75W/100W

Hertz: 50-60Hz

PF: 0.9

LM:  >120lm/W  or  Customizable

Emergency power: 30W

emergency time: 60/90/180min

Life: 50000H  3-5-year warranty

Protection grade: IP66 WF2

Explosion-proof mark: ExdblCT6 Gb/ExtblCT80℃ Db

CRI: 80

CCT: 2700/4000k/6500k

LED: LED2835 OSRAM CREE LUMILEDS SANAN

Angle: 120°

The above parameters can be customized according to requirements

    Application Environmen

    Petrochemical industry: oil refineries, chemical plants, production workshops, storage warehouses.
    Coal mines and mines: lighting in the alleyways and digging surfaces
    Power industry: substation, distribution room

     Product function

    Product features: 0-10v dimming; high lumens; can be connected in series; high temperature and freezing resistance; vibration resistance, can add emergency

    Product characteristics

    1. Material: the shell is made of high quality aluminum alloy die-casting, the surface electrostatic spraying treatment, high strength, heat dissipation, good anti-corrosion performance.
    2. Transparent parts are made of high quality tempered glass with high impact resistance and high light transmittance.
    3.LED light source: international brand, high luminous efficacy, good color rendering, small light decay, long life.
    4. Driver power supply: international brand, wide voltage, constant voltage, constant current, output current, voltage adjustable. With short-circuit, over-current, over-voltage, over-temperature protection.
    5. Structure: simple and generous structure, a variety of forms of installation, adjustable angle.
    6. Light source, power supply two cavity separation, easy to wire heat dissipation. Piece-type heat sink, good heat dissipation. Silicone pad and adhesive sealing, high temperature resistance, anti-aging, waterproof and reliable;

    Advantages of  this Explosion-proof lamp

    The explosion-proof lamp I introduce to you is especially suitable for your place needs. Its explosion-proof performance is a highlight, through the authoritative certification, with professional explosion-proof marking. It can effectively prevent internal electric sparks and other hazards in environments where there is a risk of flammability and explosion, such as your [list customer sites, such as chemical workshops, warehouses, etc.], so as to escort the safety of your site.
    In terms of performance, the use of advanced LED light source, high luminous flux, can provide sufficient bright and uniform light, color rendering is also superb, can accurately restore the true color of the object, such as you in the [if the workshop, you can cite examples of fine machining operations] operations, you can see more clearly, and work efficiency and quality can be improved. Moreover, its high luminous efficiency is also energy-saving, which can help you save a lot of electricity costs in the long run.
    It has high protection level, excellent waterproof, dustproof and anti-corrosion ability, no matter wet and dusty, or corrosive gases in harsh environments, can operate stably, with a long service life, reducing the trouble and cost of frequent replacement of lamps and lanterns.
    Installation is also very flexible and convenient, there are a variety of installation methods, such as [list the installation methods suitable for the customer site] can be, can easily adapt to the layout of your site. Follow-up maintenance is also simple, will not cause you too much trouble.
    Our brand has been focusing on explosion-proof lamps and lanterns R & D and production, quality and reliable, after-sales service is also guaranteed, if you use any problems encountered in the process, we will respond in a timely manner to deal with. You may wish to consider the use of this explosion-proof lights, can really bring safety, efficiency and worry-free lighting experience for your premises.

    Product Details Display

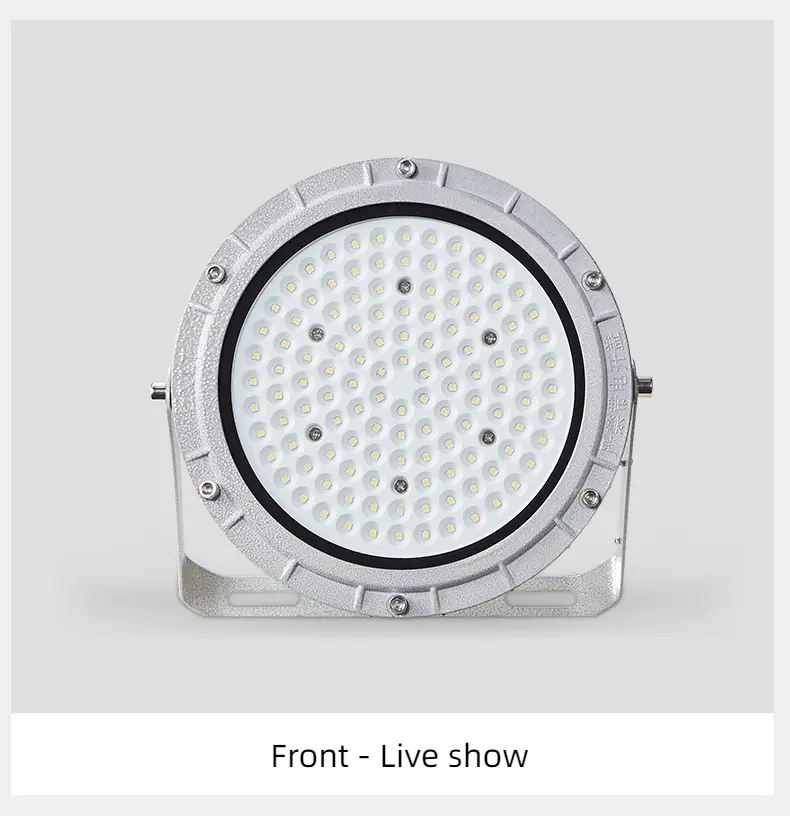

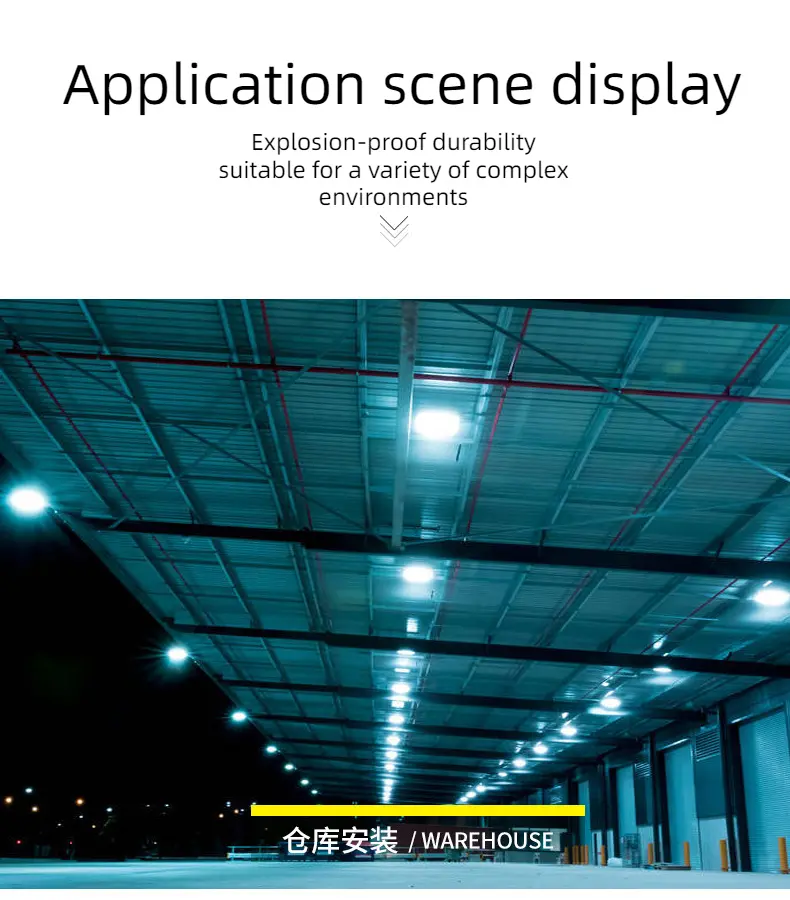

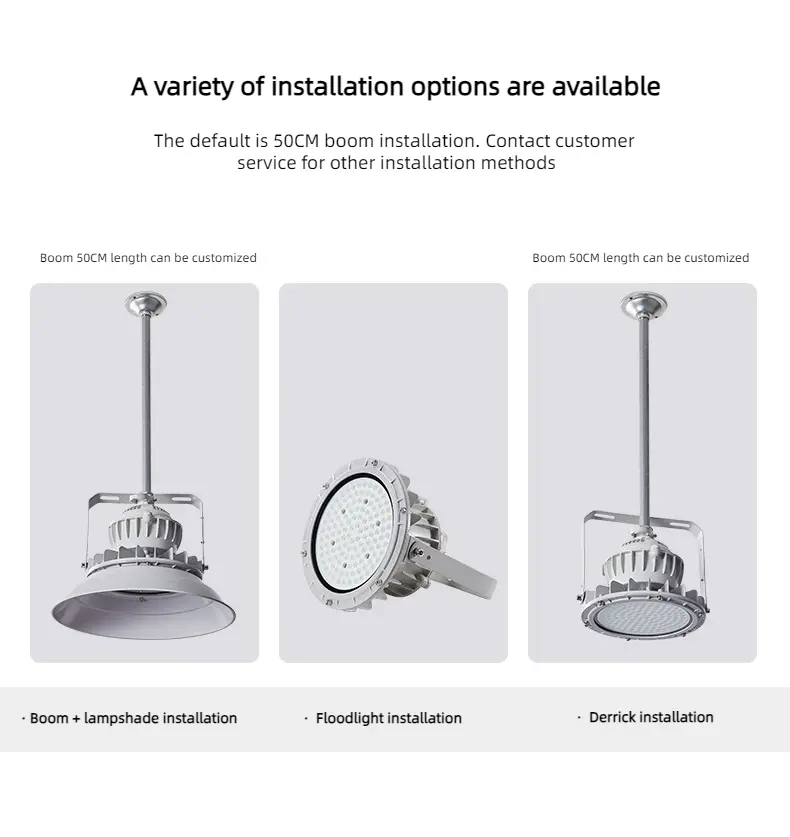

    • Explosion-proof lamp (1)Explosion-proof lamp (2)Explosion-proof lamp (3)
