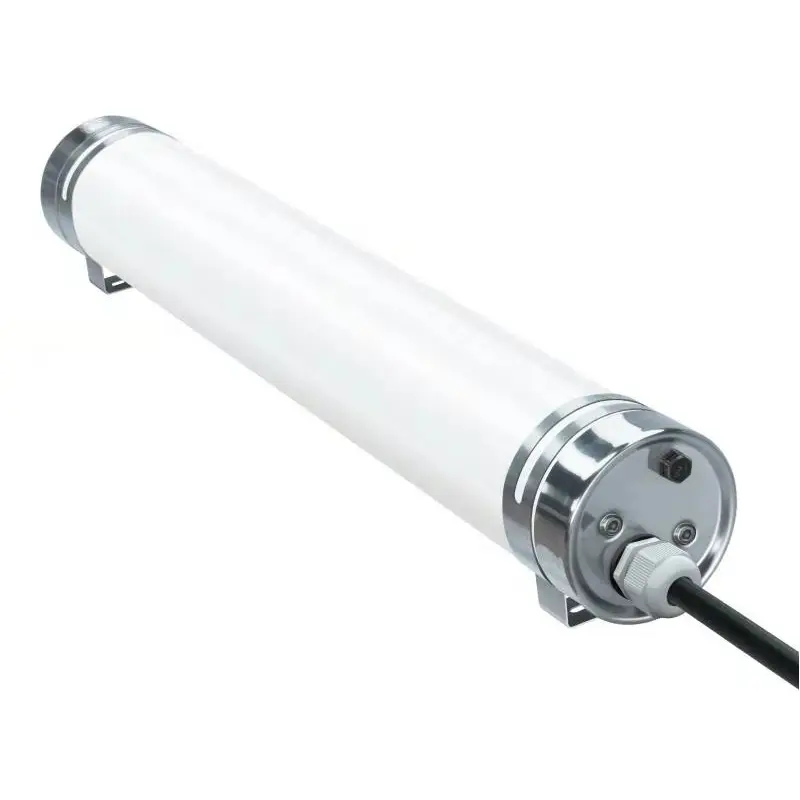

IP68 IK10 DALI Dimmable Plastic Clad Aluminum Round Tube LED Tri-proof Luminaires

The above parameters can be customized according to requirements

Model :SCD-TP700

  • Voltage: AC220-240V AC85-277V
  • Specification: 60/120/150cm 18W/36W/40W
  • Hertz: 50-60Hz
  • PF: 0.9/0.95
  • DRIVE: ANL / PHILIPS / LIFUD / BOKE
  • Emergency power: 8W/10W/20W
  • emergency time: 60/90/180min
  • sensor: Infrared induction/microwave induction
  • Life: 50000H 3-5-year warranty
  • LM: > 130lm/W Customizable>180LM/W
  • CRI: 80
  • CCT: 2700/4000k/6500k
  • LED: LED2835 OSRAM CREE LUMILEDS SANAN
  • Angle: 120°

Application Environmen

Application environment: tunnels; warehouses; garages; factories; cold storage; airports; subway stations; pigsties home; poultry animal husbandry plant; slaughterhouse fresh workshop; stadiums; farms; general wet environment; high and low temperature environment; corrosive environment, etc.

 Product function

Application environment: tunnels; warehouses; garages; factories; cold storage; airports; subway stations; pigsties home; poultry animal husbandry plant; slaughterhouse fresh workshop; stadiums; farms; general wet environment; high and low temperature environment; corrosive environment, etc.

Product characteristics

1.Protection class: IP68  IK10

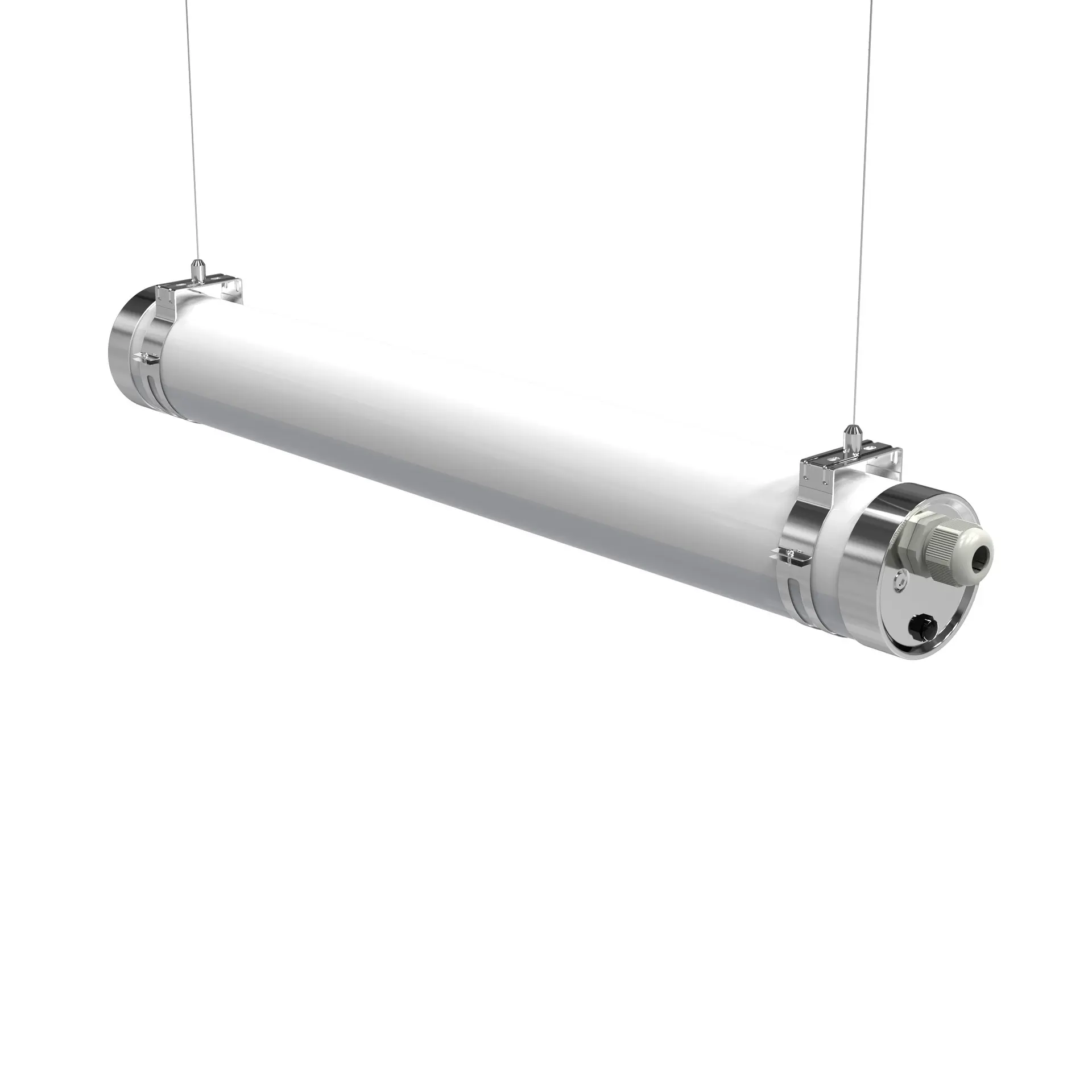

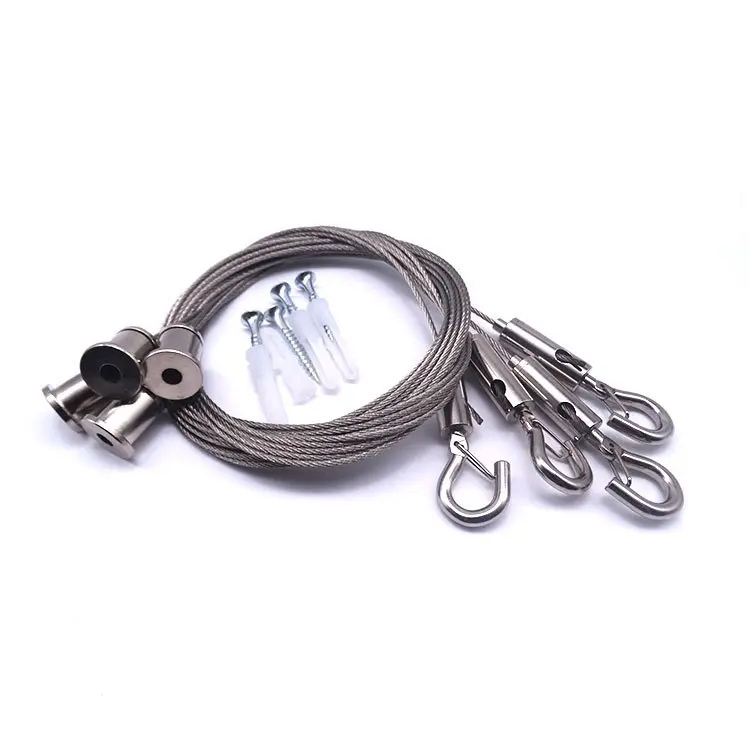

2.Installation mode: ceiling type; Boom type; Pendant type; Wall mount type
3.Standard: ISO9001 / CE/ROHS/EMC/FCC/SAA/TUV
4.Product life: 50000h Warranty 5 years
5.  Non-standard customization: Undertake OEM ODM orders

Advantages of this Triple-Proof Lights

In the heavy-duty machining workshop where steel roars and sparks fly, and in the electronic assembly line where precision parts flow, the lighting equipment faces an unprecedentedly harsh test. Metal shavings such as a fine curtain of rain flying, machine tool coolant wrapped in oil sprayed indiscriminately, the vibration and collision of the operation of the mechanical arm makes the ordinary lamps and lanterns unbearable - but this is precisely the SCD-TP700 triple-proof lamps of the home turf!
IP68-rated dustproof and waterproof performance, building an impenetrable barrier for the lamps. Even in the grinding workshop, the concentration of metal dust up to tens of milligrams per cubic meter, or in the frequent use of high-pressure water gun cleaning of food processing plant, the lamps and lanterns internal core components remain unharmed; IK10 anti-impact level, so that the lamps and lanterns are not afraid of accidental collision, whether it is forklift forks of the cuts, or parts of the handling of the fall, can be undamaged and continue to work.
The breakthrough 150lm/W luminance makes the lighting efficiency soar. 1.2m specifications, for example, a single lamp can cover 15 square meters of work area, compared with ordinary lamps and lanterns to reduce the number of lamps by 30%, not only to save the cost of wiring, but also to make the machine tool operating table, assembly line every corner of the bright as day, the workers have a clear line of sight, precision operation with ease. 0.6m compact specifications to adapt to the narrow space of the control cabinets, equipment access ports, etc., and the 1.5m extra-long models are perfect to cover the large-scale plant open area, multi-size combinations, to meet the industrial lighting requirements. Multi-size combination to meet the diverse needs of industrial scenes.
SCD-TP700 triple-proof lamp, with hardcore strength, for the protection of industrial production, so that every process in the bright and accurate completion, so that every safety in the light under the steady landing!

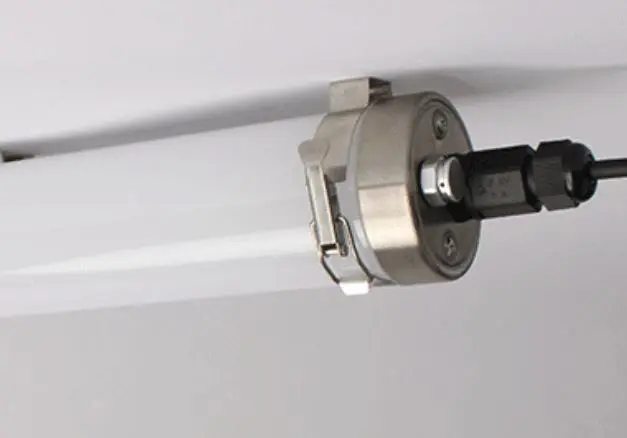

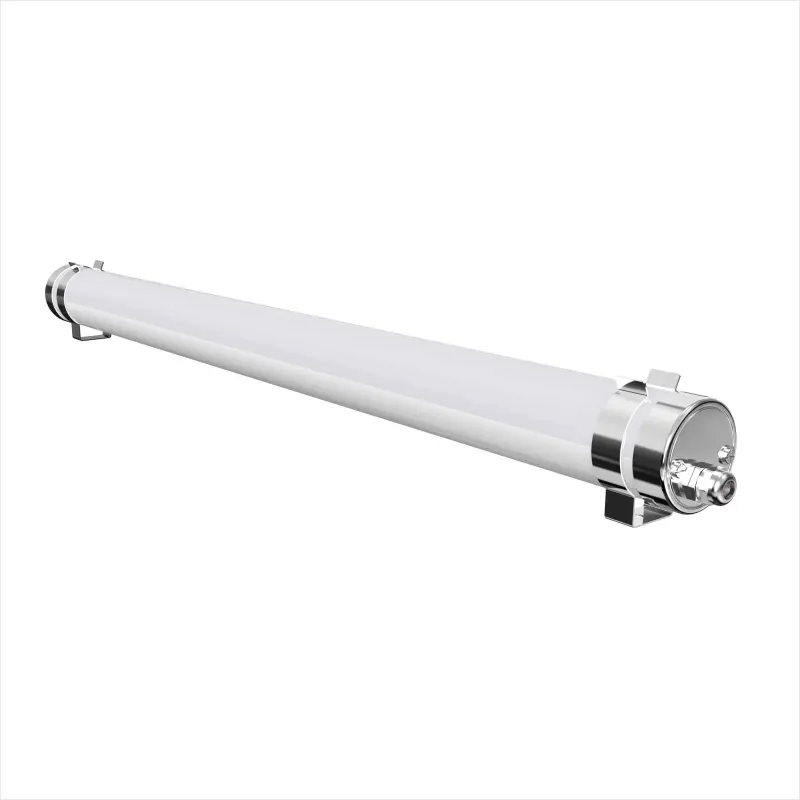

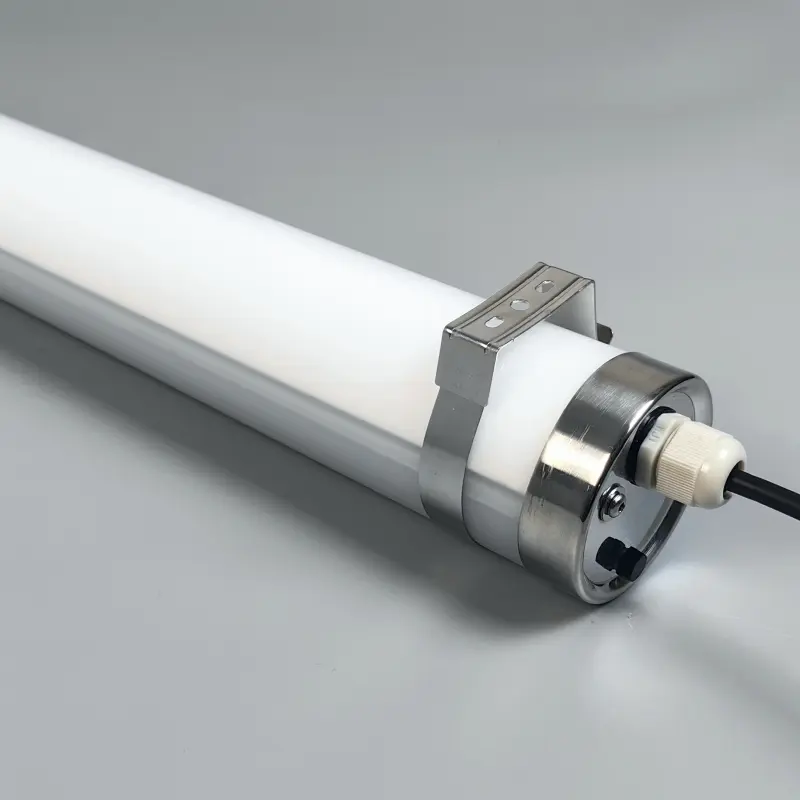

Product Details Display

  • 1
  • 2
  • 3
