LED rectangular anti-corrosion and Tri-proof lamp

The above parameters can be customized according to requirements

Model :  SCD-TP550

  • Voltage: AC85-277V ACDC24/36V
  • Specification: 60/90/120/150cm 20W/40W/50W/60W
  • Hertz: 50-60Hz
  • PF: 0.95
  • DRIVE: ANL PHILIPS LIFUD BOKE
  • Emergency power: 3W/10W/20W
  • emergency time: 60/90/180min
  • sensor: Infrared induction/microwave inductio
  • Life: 50000H 5-year warranty
  • LM: > 130lm/W Customizable>180LM/W
  • CRI: 80
  • CCT: 2700/4000k/6500k
  • LED: LED2835 OSRAM CREE LUMILEDS SANAN
  • Angle: 120°

Application Environmen

1. Application environment: Tunnel; Warehouse; garage; Factory; Cold storage; airport; Metro Station; Livestock breeding plants; stadium; farm; Generally humid environment; High and low temperature environment; Corrosive environment, etc.

 Product function

2. Product function: 0-10v dimming; Graffiti intelligent Bluetooth dimming; DALI dimming; Ultra high brightness; Battery emergency; Motion sensors; Can be connected in series; Metal casing; Waterproof, Explosion-proof, Dustproof, UV resistant and Corrosion-resistant; High temperature resistance and frost resistance; Anti vibration.

Advantages of this Triple-Proof Lights

1. Product material: reinforced PC (plastic wrapped aluminum)

2. Protection level: IP65 IK08 flame retardant V2 anti-corrosion WF2

3. Installation method: ceiling mounted; Suspension rod type; Hanging wire type; Wall mounted

4. Certification standards: ISO9001/CE/ROHS/EMC/FCC/SAA/TUV



The role of anti-corrosion Tri-proof lights in protecting against corrosive environments



The following is an analysis of the role of anti-corrosion and three-proof lights in protecting against corrosive environments and the types of corrosive environments to which they are applicable:

Role of Anti-corrosion Tri-proof Lights

1. Extended Lifespan: By using corrosion-resistant materials and surface treatment techniques, these lights effectively resist acids, alkalis, salts, and other corrosive substances, ensuring long-term stable operation in harsh environments.

2. Guaranteed Lighting Stability: Preventing damage to internal electrical components and optical parts by corrosive substances, thus ensuring continuous and stable lighting effects.

3. Reduced Maintenance Costs: Due to their excellent anti-corrosion performance, the frequency of lamp replacement and maintenance work is reduced, saving users a lot of costs.



Applicable Corrosive Environments

1. Chemical Enterprises: In places such as chemical plants, the air often contains acidic or alkaline gases, and anti-corrosion three-proof lights can resist the corrosion of these gases and ensure long-term stable operation.

2. Electroplating Plants: A large amount of corrosive substances will be produced during the electroplating process, and the special materials and coatings of anti-corrosion three-proof lights can effectively prevent corrosion and ensure production safety.

3. Coastal Facilities: The sea mist and salt spray in the coastal environment are highly corrosive to the lamps, and the anti-corrosion three-proof lamps can provide stable lighting services for a long time.

4. Sewage Treatment Plants: There are a large number of corrosive gases and liquids in sewage treatment plants, and anti-corrosion three-proof lights can maintain good lighting effects in this environment.

5. Coastal Areas: The high humidity and salt environment in coastal areas are highly corrosive to lamps, and anti-corrosion three-proof lamps can adapt to this environment and provide reliable lighting.

Product Details Display

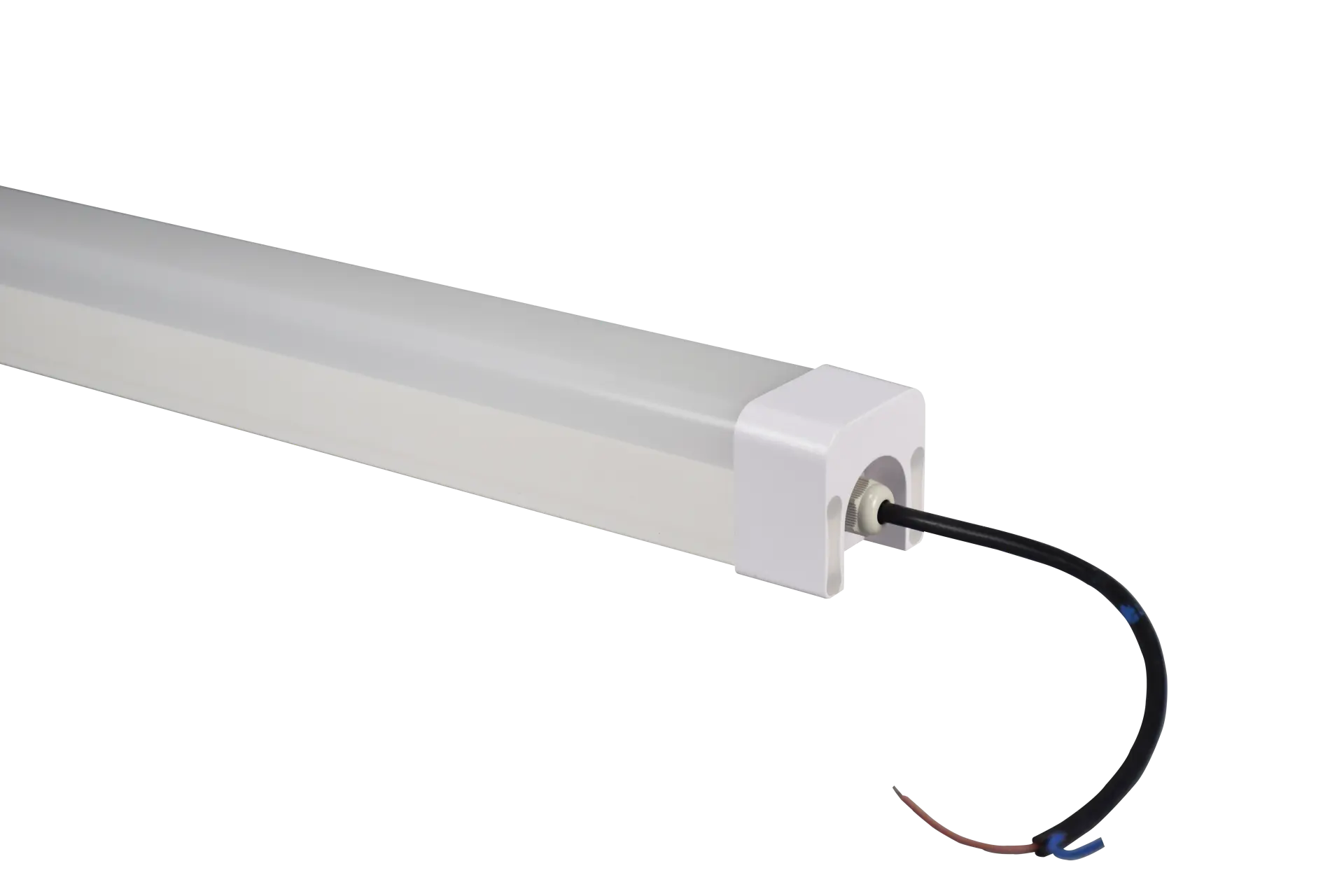

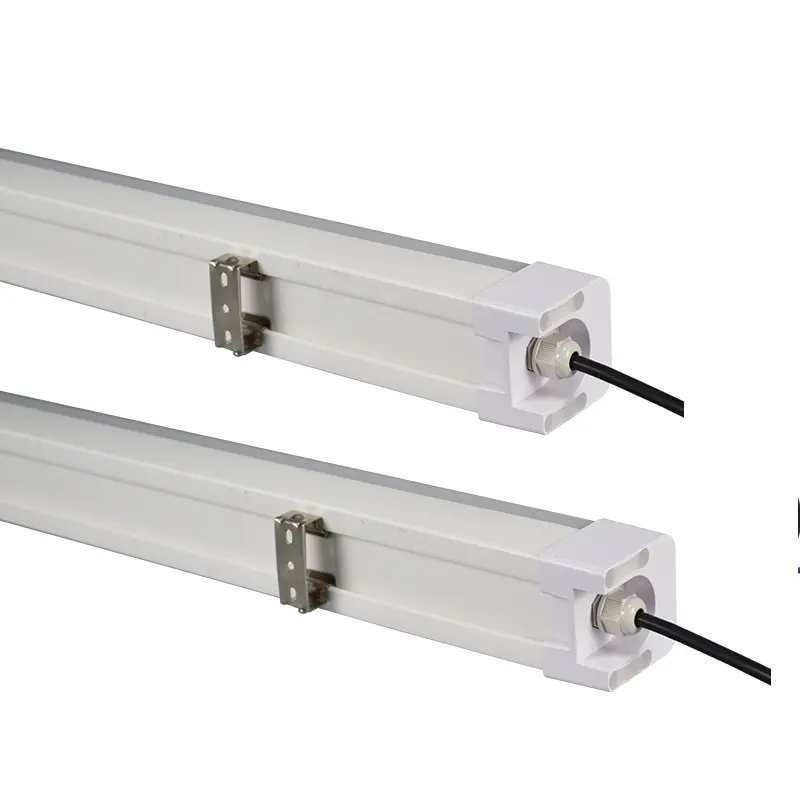

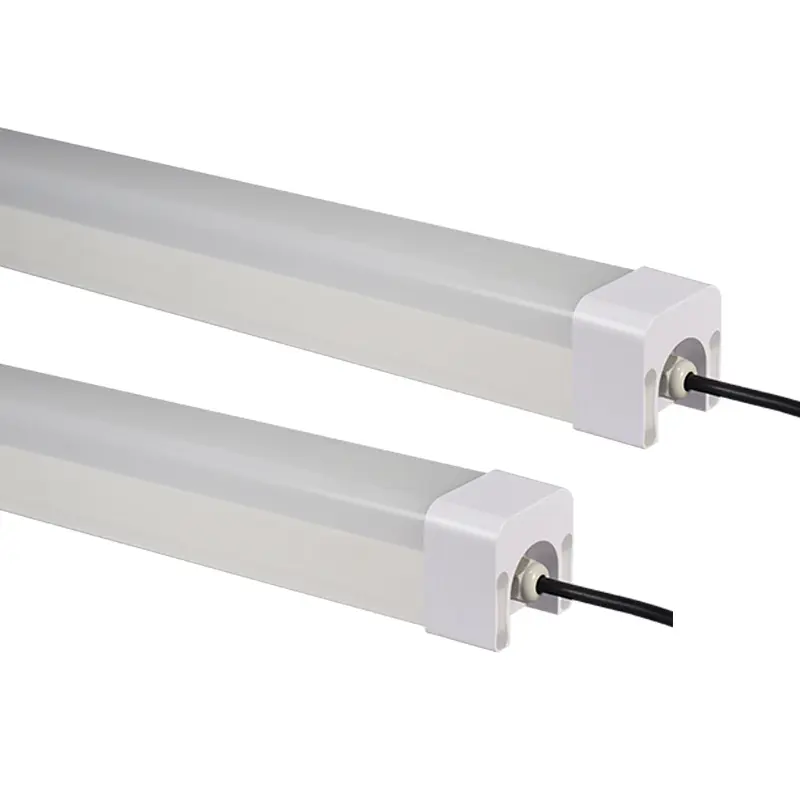

SCD-TP550主图 (1)SCD-TP550主图 (2)SCD-TP550主图 (3)(1)
